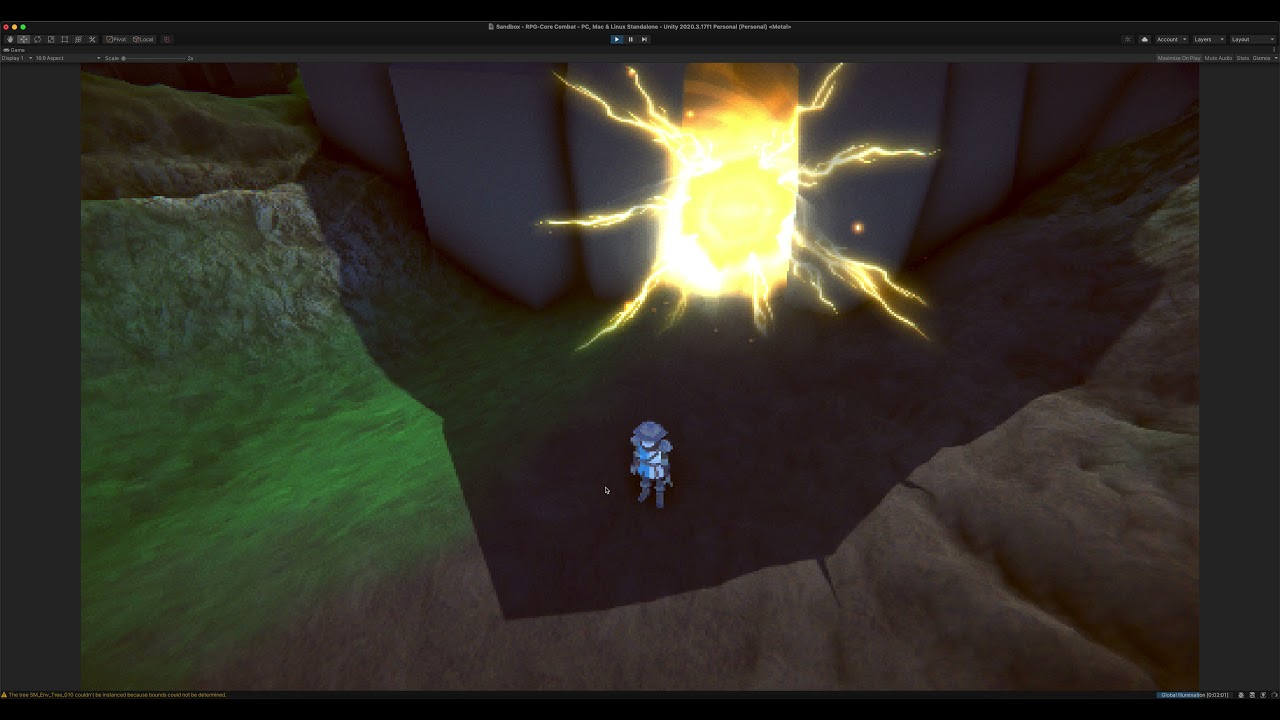

Animated Warp Portal Transition

Here’s how my transition works

Here is what I added

  • Spawn point - where we teleport the player
  • Destination point - where we tell the navMesh Agent to move after the warp
  • WarpGate particle system - we trigger the animation via code with particleSystem.play(true).

EDIT - Mihai from the future here :slight_smile: . In order for the save system to work with the animation we need to place the second save after we enable the collider. If we don’t do it - it will save the player in the spawnPosition instead of the destinationPoint

            SavingWrapper wrapper = FindObjectOfType<SavingWrapper>();
            wrapper.Save();

            yield return SceneManager.LoadSceneAsync(sceneToLoad);

            wrapper.Load();

            Portal otherPortal = GetOtherPortal();
            UpdatePlayer(otherPortal);


            yield return new WaitForSeconds(fadeWaitTime);
            yield return fader.FadeIn(fadeInTime);

            //We enable back the collider, once the player moved past it
            otherPortal.GetComponent<BoxCollider>().enabled = true;
            //We Save the position here - once the player is close to the destination and not the spawnPoint
            wrapper.Save();

The idea is to have the spawnPoint behind the warp gate Particles and the destination point in front of the collider - that way you can move the player between them and it looks he’s coming out of the portal



Here is my code for Portal.cs
I’ve only changed the Transition IEnumerator and UpdatePlayer.

        private IEnumerator Transition()
        {
            //We Get the current player in the scene
            GameObject player = GameObject.FindGameObjectWithTag("Player");
            if (sceneToLoad < 0) yield break;
            DontDestroyOnLoad(gameObject);
            Fader fader = FindObjectOfType<Fader>();
            //We Enable the particles on exit
            warpGateParticles.Play(true);
            //We tell the player to move to the spawn point which is behind the particle system - creating the effect that he disappears
            player.GetComponent<NavMeshAgent>().SetDestination(spawnPoint.position);
            //We wait a bit to the player to reach the spawnDestination - insert
            yield return new WaitForSeconds(0.5f);
            yield return fader.FadeOut(fadeOutTime);
            yield return SceneManager.LoadSceneAsync(sceneToLoad);
            Portal otherPortal = GetOtherPortal();
            UpdatePlayer(otherPortal);
            yield return new WaitForSeconds(fadeWaitTime);
            yield return fader.FadeIn(fadeInTime);
            //We enable back the collider, once the player moved past it
            otherPortal.GetComponent<BoxCollider>().enabled = true;
            Destroy(gameObject);
        }

And UpldatePlayer

        private void UpdatePlayer(Portal otherPortal)
        {
            //We get the "otherPortal" player, from the desination scene
            GameObject player = GameObject.FindGameObjectWithTag("Player");
            player.GetComponent<NavMeshAgent>().Warp(otherPortal.spawnPoint.position);
            player.transform.rotation = otherPortal.spawnPoint.rotation;
            //We disable the portal collider so it's not triggered when the player moves to the destination point
            otherPortal.GetComponent<BoxCollider>().enabled = false;
            //We enable the particles when the player exists the portal
            otherPortal.warpGateParticles.Play(true);
            //We tell the player to move to the desinationPoint
            player.GetComponent<NavMeshAgent>().SetDestination(otherPortal.destinationPoint.position);
        }

5 Likes

Very nicely done!!

1 Like

Super smooth, looks brilliant.

1 Like

Looks very cool, I like it.

1 Like
