Unity 3rd Person Combat & Traversal: Implementing Jump Animation

[MaximilianPs]

Hello,

I’m trying to implement a Jump State machine, but when I try to play the animation it won’t work at all…
I mean it actually jump 'cause I’m using force on the RigidBody, but not the animation.
At the moment I’m just trying with hardcoded value:

stateMachine.Animator.Play("Jump_Enter", 0);

The second parameter should be the layer, If I’m not getting wrong
Just to be more complete I’ll post the entire code here:

 public class PlayerJump : PlayerBaseState
    {
        public PlayerJump(PlayerStateMachine stateMachine) : base(stateMachine) { }

        public override void Enter()
        {
            Vector3 jumpForce = new Vector3(stateMachine.Controller.velocity.x, 12, stateMachine.Controller.velocity.z);
            stateMachine.GetComponent<Rigidbody>().isKinematic = false;
            stateMachine.GetComponent<Rigidbody>().useGravity = true;

            stateMachine.Animator.Play("Jump_Enter", 0);
            stateMachine.ForceReceiver.AddForce(jumpForce);
        }

        public override void Tick(float deltaTime)
        {
            if(stateMachine.GetComponent<Rigidbody>().velocity.y < 0.1f)
            {
                stateMachine.GetComponent<Rigidbody>().isKinematic = true;
                stateMachine.GetComponent<Rigidbody>().useGravity = false;
                stateMachine.Animator.CrossFade("Jump_Exit", 0.1f);
                stateMachine.SwitchState(new PlayerFreeLookState(stateMachine));
            }
        }

        public override void Exit()
        {
        }
    }

[Marc_Carlyon]

If the animation is not playing it could be the animation itself.
I would check the animation plays in the unity editor window as some animation may not work with the model depending on the rig settings.

Let me know on this.

I am not sure if we will be adding jump later in the course so my help may be limited in that respect

[MaximilianPs]

The animation is fine, so I’m making wrong something else for sure.
Maybe I should add a trigger and connect the animation to “Any State”, that would more easy

[Marc_Carlyon]

We will be implementing jump the next section so i would hold fire until then

[mihaivladan]

Hey @MaximilianPs , here is one possible solution for a jump interaction. Keep in mind - this is buggy and doesn’t take into account a lot of variables

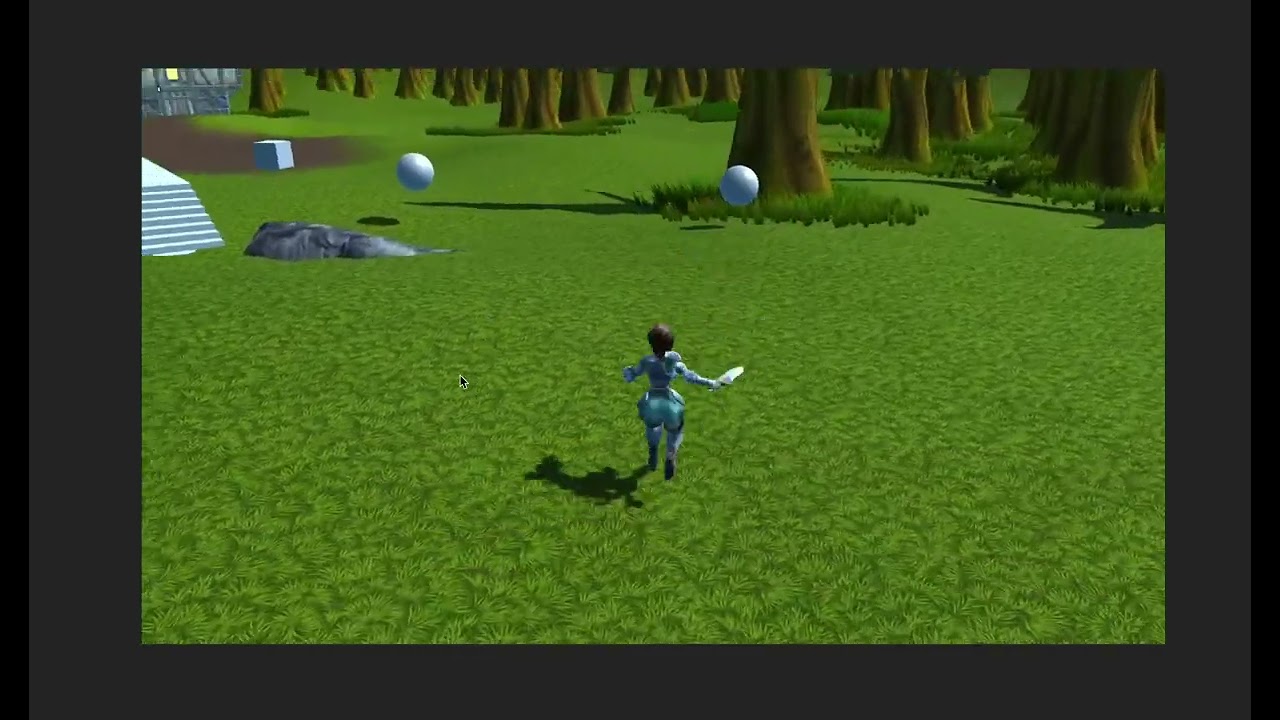

jump

The main idea I had was to reuse our logic from the Impact State. And not use a Rigidbody. So I’ve added the following:

In the PlayerStateMachine.cs I’ve added the Jump Events like this

    private void OnEnable()
    {
        Health.OnTakeDamage += HandleTakeDamage;
        Health.OnDie += HandleDeath;
        InputReader.JumpEvent += HandleJump;
    }



    private void OnDisable()
    {
        Health.OnTakeDamage -= HandleTakeDamage;
        Health.OnDie -= HandleDeath;
        InputReader.JumpEvent -= HandleJump;
    }

   private void HandleJump()
    {
        SwitchState(new PlayerJumpState(this));
    }

I’ve also added 2 new variables there as well. A float that will hold the Vertical Velocity and a LayerMask for the ground check

public float VerticalVelocity { get; set; }
[field:SerializeField] public LayerMask GroundLayer { get; private set; }

And to finish things off I’ve made PlayerJumpState.cs like this

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class PlayerJumpState : PlayerBaseState
{
    private readonly int _jumpStartHash = Animator.StringToHash("JumpStart");

    private float _groundedTimer;
    private float _jumpHeight = 1.2f;
    private float _gravityValue = 18f;
    private bool _groundedPlayer;
    private LayerMask _groundLayers;
    private Vector3 _movement;

    public PlayerJumpState(PlayerStateMachine stateMachine) : base(stateMachine) { }

    public override void Enter()
    {
        //if you have my Foot IK script on the player you need to disable it
        stateMachine.FeetGrounder.enabled = false;

        //we get the current velocity
        _movement = stateMachine.Controller.velocity;
        //we add the Jump velocity to it
        stateMachine.VerticalVelocity += Mathf.Sqrt(_jumpHeight * 2 * _gravityValue);
        _movement.y = stateMachine.VerticalVelocity;

        //we trigger the jump animation - Its a single animation not jump start / middle / end
        stateMachine.Animator.CrossFadeInFixedTime(_jumpStartHash,0.1f);
        //we apply the force with our move script
        Move(_movement,Time.deltaTime);
        Debug.Log("Entered The Jump State");
    }

    public override void Tick(float deltaTime)
    {
        //if we are on the ground and our velocity is lower than 0 - we switch back to locomotion
        if (GroundedCheck() && stateMachine.VerticalVelocity < 0f)
        {
            Debug.Log("Finished the Jump State");
            stateMachine.VerticalVelocity = 0f;
            stateMachine.FeetGrounder.enabled = true;
            ReturnToLocomotion();
        }
        //this "fakes" the gravitation pull - makes us fall to the ground
        stateMachine.VerticalVelocity -= _gravityValue * Time.deltaTime;
        Move(_movement, Time.deltaTime);
    }

    public override void Exit()
    {

    }

    private bool GroundedCheck()
    {
        //this is the code from the 3rd person character controller from unity.
        // set sphere position, with offset
        var position = stateMachine.transform.position;
        Vector3 spherePosition = new Vector3(position.x, position.y - 0.14f, position.z);
        _groundedPlayer = Physics.CheckSphere(spherePosition, 0.5f, stateMachine.GroundLayer,
            QueryTriggerInteraction.Ignore);
        return _groundedPlayer;
    }
}

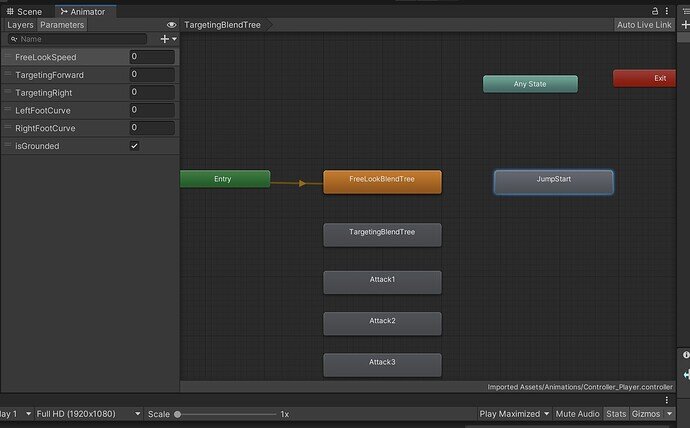

For my Animator - I’ve added a single animation for the jump. I’ve tried with 3 (start/middle/end) but it was way too buggy

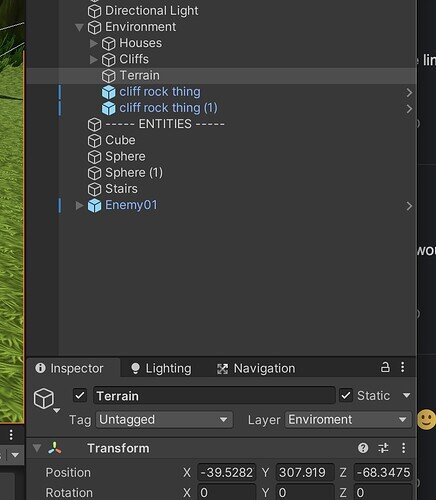

You will need to set all your ground/scene elements to a new layer (ex: environment) for the ground check to work

[Marc_Carlyon]

Nice work there mihaivadan, It will be interesting to see what approach Nathan takes and if its the same approach
