Remeshing a bit Rough?

[Trucker_Pete]

…

---

• Original Image was 0.008 Vox

I Changed the orientation of Head to Neck to make better transition and smoothed out the edges between them …

Then tried 0.006

Imge 2 and 3 are 0.0038 Vox

… but there are immovable vertices which prevent smoothing … You can make the grab brush small and try and drag them but they dont move … only the verts around them move ?
Maybe I should just carry on with these little unsmoothed bits ? …

Was going to dnload image but I see my Png files not appeared … lately not appearing… They come and go in the computer file and dont show up here at all anymore … “solved by opening in gimp, saving on dektop” …acting very strangely …

After joining Troll I remeshed and its extremely rough , spiky , jagged , unsmoothable ?

[CoreyKnecht]

To me, it looks like your voxel size is a bit big - this can also be one reason why smoothing doesn’t work as expected. I would try just experimenting with smaller sizes to see what’s reasonably smoothable for the level of detail you’re at right now, since you don’t really want to remesh too fine too early.

[Trucker_Pete]

Smaller Voxel size doesent make it Finer ?

[Trucker_Pete]

• Original Image was 0.008 Vox

I Changed the orientation of Head to Neck to make better transition and smoothed out the edges between them …

Then tried 0.006

Imge 2 and 3 are 0.0038 Vox

… but there are immovable vertices which prevent smoothing … You can make the grab brush small and try and drag them but they dont move … only the verts around them move ?
Maybe I should just carry on with these little unsmoothed bits ? …

[CoreyKnecht]

Yes, now I see that you actually did include the voxel sizes in your original post. Still, the topology shown looks really big for those numbers. Is it possible you were changing the voxel size without actually remeshing to it? Changing the voxel size doesn’t do anything by itself and it’s easy to forget to remesh afterwards to actually “apply” that change. That’s about the only thing I can think of.

[Trucker_Pete]

Ok … Thanks … Ill try figure something out …

[HobbyPirates]

So, I tested this in a new scene first, but is the scale of your item set to 1? 0.006 would be good enough, if your scale is set.

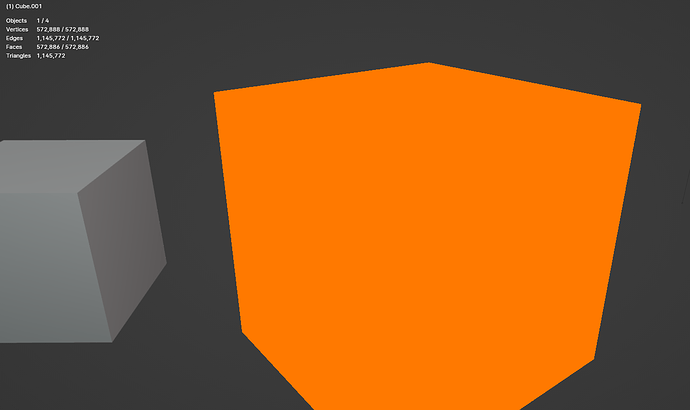

Scale not set 0.00650 remesh of a cube:

572K faces

Scale set, same 0.00650 remesh of the same cube:

1.8 mil faces

Do you have a copy of your file from before the first remesh you did, before or just after you joined all the pieces?
