Procedural Iris by me!

Had the insane idea of trying to make a procedural Iris material myself…

At first my problem was making the “lines” go toward the center of the circle…

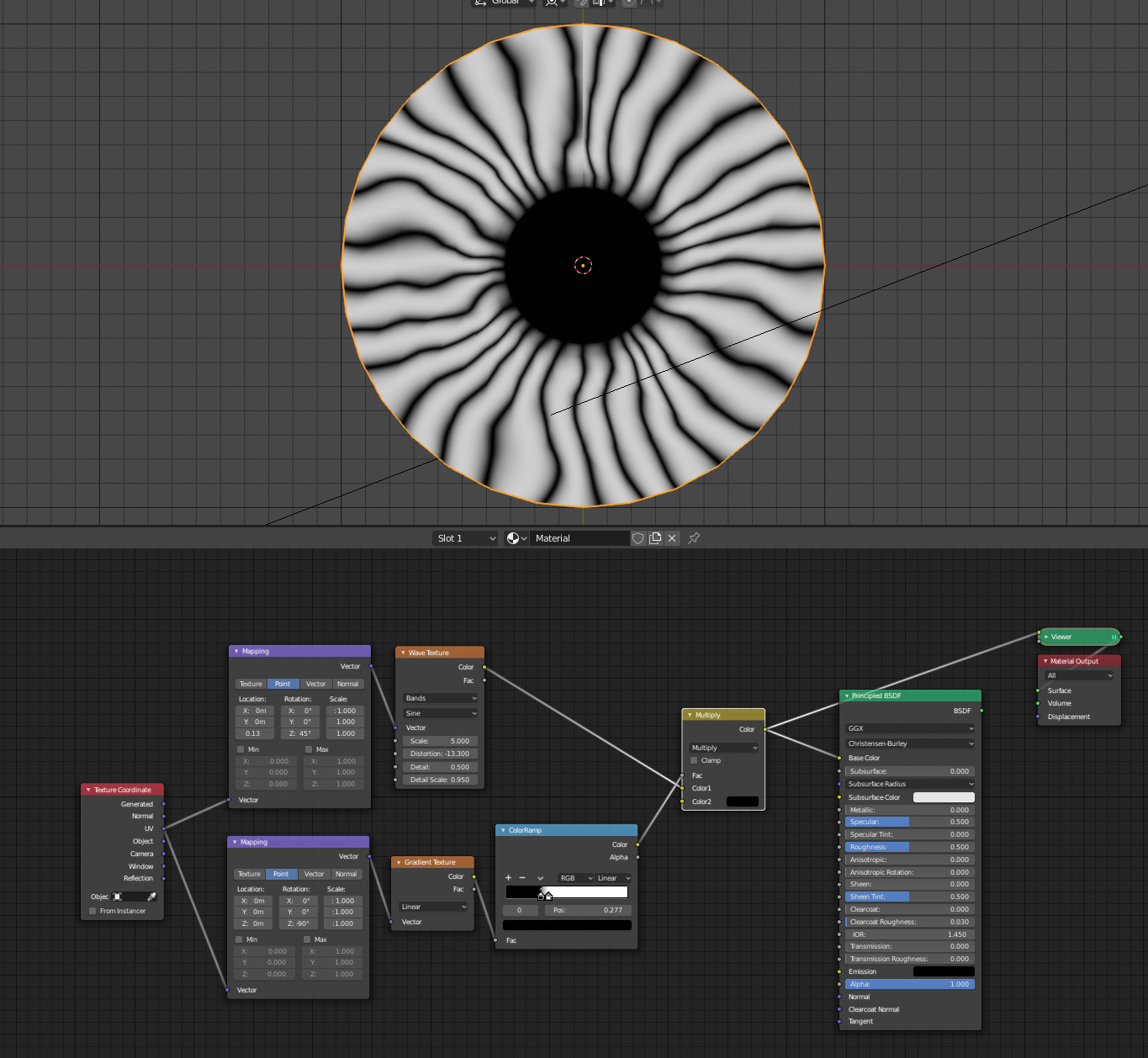

But then I found this “Follow Active Quads” trick:


By doing this, allows the lines of a Wave Texture for example to go towards the center.
And a Gradient set to Linear to be a Circle so I could define the Pupil.

And like this I could start my journey…

And it’s going pretty good I guess.
May not be the most accurate Iris but the result is acceptable I think.

A render of a Blue Iris :smile:
