Hey i have an issue while performing unity developer 3D course : my waypoint progress tracker is not working, it’s just stay at waypoint 0. Does someone have already faced this trouble ?
1 Like
TBH the utility scripts unity gives are rubbish. I found a lot of bugs and weird gotchas in the Waypoint Progress Tracker.
You can use my highy modified WaypointCircuit code if you like, and delete the whole WaypointProgressTracker code because it’s just rubbish.
My WaypointCircuit moves rigidbodies, not transforms. I would recommend parenting your ship to a rail (an empty gameobject with a rigidbody attached, even without a collider) and the moving the rail.
Obviously make sure the local transform of the ship is (0,0,0). This approach is good because later we can move the ship around semi-independently of the moving rail. The rail acts like a tether rope.
Also make sure your circuit has the WaypointCircuit script attached, and the circuit has a dozen or so children to act as the waypoints, and that it is not linked/parented to anything else.
Finally you need to have that the last child of the circuit is a copy/duplicate of the first (see comment “ensure the last waypoint is a duplicate of the first”). This is because my code needs to treat the “distance” of the whole smoothed-curve track as the distance of the final element, which of course should be the same as the first.
This code won’t work if you are after a non-cyclic path.

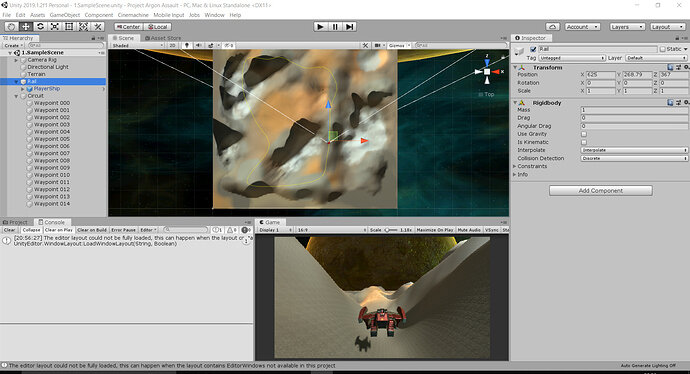

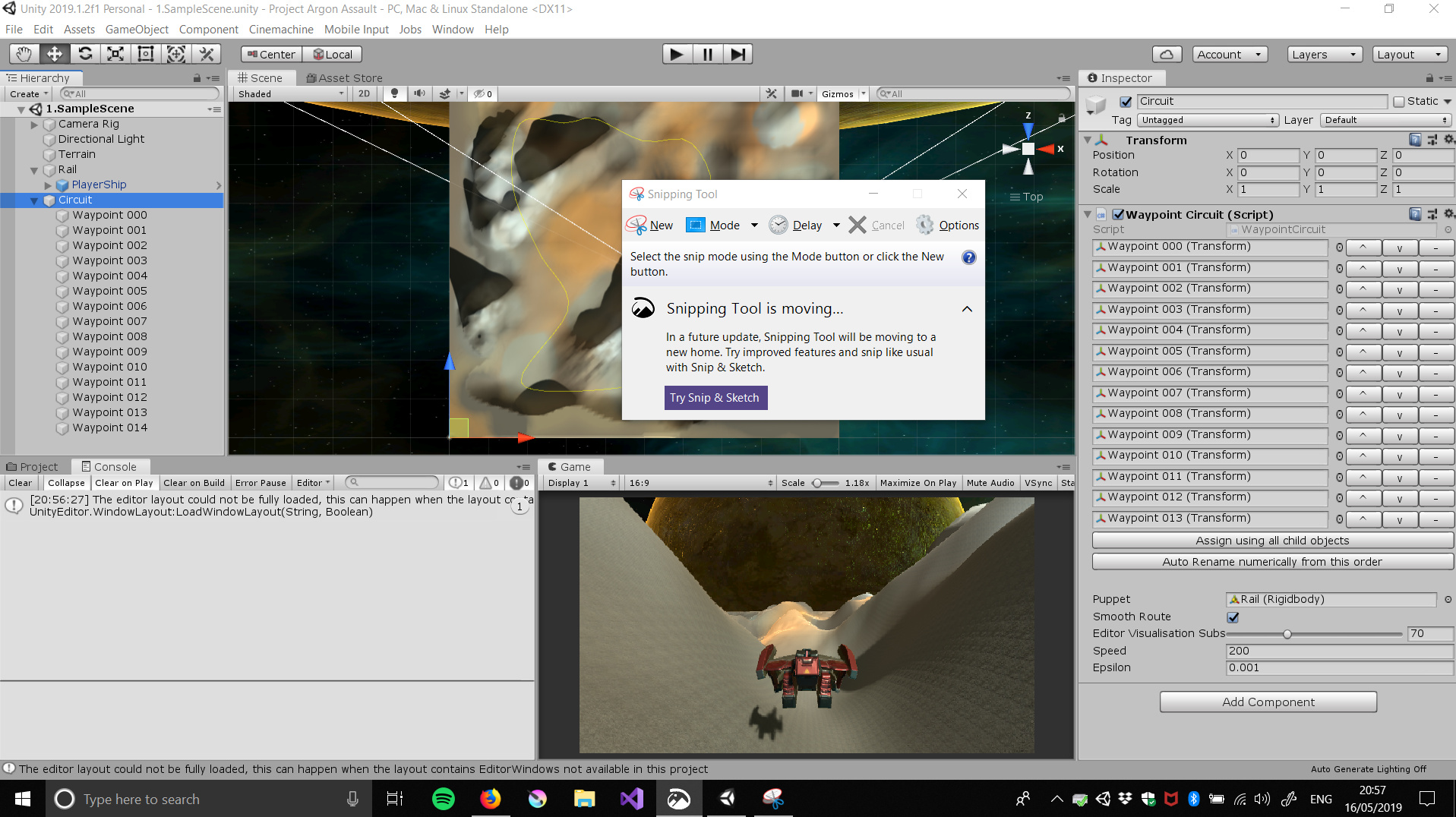

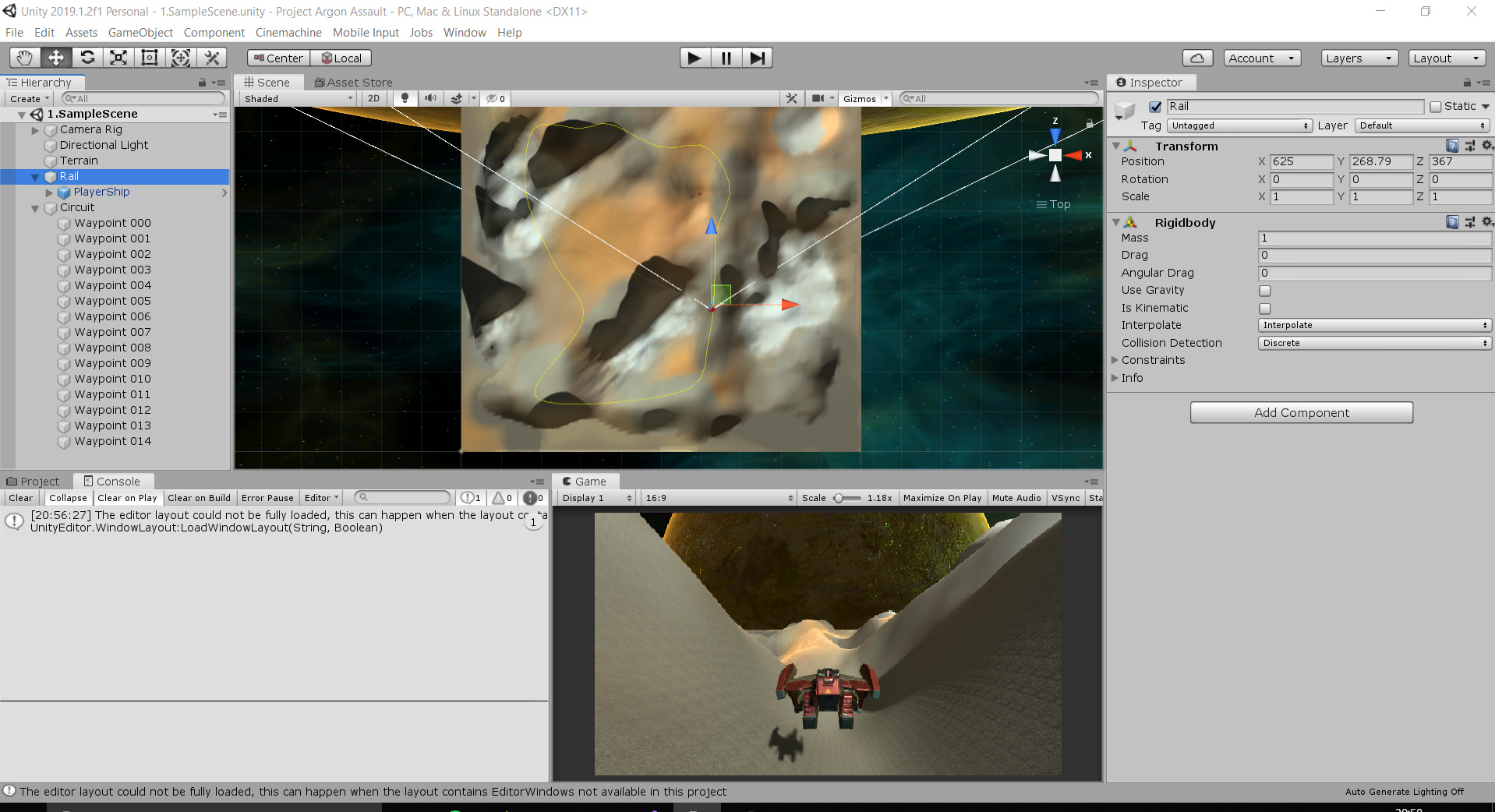

Here is a picture or two showing what I mean:
And here is my code.
using System;
using System.Collections;
using UnityEngine;
#if UNITY_EDITOR
using UnityEditor;
#endif
namespace UnityStandardAssets.Utility
{
public class WaypointCircuit : MonoBehaviour
{
public WaypointList waypointList = new WaypointList();
public Rigidbody puppet = null;
[SerializeField] private bool smoothRoute = true;
// Warning: ensure the last waypoint is a duplicate of the first
private int numPoints;
private Vector3[] points;
private float[] distances;
[Range(3, 200)] public float editorVisualisationSubsteps = 100;
public float Length { get; private set; }
public Transform[] Waypoints
{
get { return waypointList.items; }
}
//this being here will save GC allocs
private int p0n;
private int p1n;
private int p2n;
private int p3n;
private float i;
private Vector3 P0;
private Vector3 P1;
private Vector3 P2;
private Vector3 P3;
float distanceTravelled = 0;
[SerializeField] float speed = 10f;
[SerializeField] float epsilon = 0.001f;
Vector3 velocity = Vector3.one;
void Awake()
{
if (Waypoints.Length > 1)
{
CachePositionsAndDistances();
}
numPoints = Waypoints.Length;
Length = distances[distances.Length - 1];
velocity = speed * (GetRoutePosition(epsilon) - GetRoutePosition(0)).normalized;
distanceTravelled = 0;
puppet.velocity = velocity;
}
void FixedUpdate() // for micromotion
{
if (distanceTravelled > Length) distanceTravelled -= Length; // modulo
distanceTravelled += Time.deltaTime * speed;
velocity = speed * (GetRoutePosition(distanceTravelled) - puppet.position).normalized;
puppet.velocity = velocity;
puppet.transform.forward = velocity;
}
void Update() // when we get close to a waypoint, snap to it and update distanceTravelled and velocity
{
}
public Vector3 GetRoutePosition(float d)
{
int point = 0;
d = Mathf.Repeat(d, Length);
while (distances[point] < d)
{
++point;
}
// get nearest two points, ensuring points wrap-around start & end of circuit
p1n = ((point - 1) + numPoints)%numPoints;
p2n = point;
// found point numbers, now find interpolation value between the two middle points
i = Mathf.InverseLerp(distances[p1n], distances[p2n], d);
if (smoothRoute)
{
// smooth catmull-rom calculation between the two relevant points
p0n = ((point - 2) + numPoints)%numPoints;
p3n = (point + 1)%numPoints;
p2n = p2n%numPoints;
P0 = points[p0n];
P1 = points[p1n];
P2 = points[p2n];
P3 = points[p3n];
return CatmullRom(P0, P1, P2, P3, i);
}
else
{
// simple linear lerp between the two points:
p1n = ((point - 1) + numPoints)%numPoints;
p2n = point;
return Vector3.Lerp(points[p1n], points[p2n], i);
}
}
private Vector3 CatmullRom(Vector3 p0, Vector3 p1, Vector3 p2, Vector3 p3, float i)
{
return 0.5f*
((2*p1) + (-p0 + p2)*i + (2*p0 - 5*p1 + 4*p2 - p3)*i*i +
(-p0 + 3*p1 - 3*p2 + p3)*i*i*i);
}
private void CachePositionsAndDistances()
{
points = new Vector3[Waypoints.Length + 1];
distances = new float[Waypoints.Length + 1];
float accumulateDistance = 0;
for (int i = 0; i < points.Length; ++i)
{
var t1 = Waypoints[(i)%Waypoints.Length];
var t2 = Waypoints[(i + 1)%Waypoints.Length];
if (t1 != null && t2 != null)
{
Vector3 p1 = t1.position;
Vector3 p2 = t2.position;
points[i] = Waypoints[i%Waypoints.Length].position;
distances[i] = accumulateDistance;
accumulateDistance += (p1 - p2).magnitude;
}
}
}
private void OnDrawGizmos()
{
DrawGizmos(false);
}
private void DrawGizmos(bool selected)
{
waypointList.circuit = this;
if (Waypoints.Length > 1)
{
numPoints = Waypoints.Length;
CachePositionsAndDistances();
Length = distances[distances.Length - 1];
Gizmos.color = selected ? Color.yellow : new Color(1, 1, 0, 0.5f);
Vector3 prev = Waypoints[0].position;
if (smoothRoute)
{
for (float dist = 0; dist < Length; dist += Length/editorVisualisationSubsteps)
{
Vector3 next = GetRoutePosition(dist + 1);
Gizmos.DrawLine(prev, next);
prev = next;
}
Gizmos.DrawLine(prev, Waypoints[0].position);
}
else
{
for (int n = 0; n < Waypoints.Length; ++n)
{
Vector3 next = Waypoints[(n + 1)%Waypoints.Length].position;
Gizmos.DrawLine(prev, next);
prev = next;
}
}
}
}
[Serializable]
public class WaypointList
{
public WaypointCircuit circuit;
public Transform[] items = new Transform[0];
}
public struct RoutePoint
{
public Vector3 position;
public Vector3 direction;
public RoutePoint(Vector3 position, Vector3 direction)
{
this.position = position;
this.direction = direction;
}
}
}
}
namespace UnityStandardAssets.Utility.Inspector
{
#if UNITY_EDITOR
[CustomPropertyDrawer(typeof (WaypointCircuit.WaypointList))]
public class WaypointListDrawer : PropertyDrawer
{
private float lineHeight = 18;
private float spacing = 4;
public override void OnGUI(Rect position, SerializedProperty property, GUIContent label)
{
EditorGUI.BeginProperty(position, label, property);
float x = position.x;
float y = position.y;
float inspectorWidth = position.width;
// Draw label
// Don't make child fields be indented
var indent = EditorGUI.indentLevel;
EditorGUI.indentLevel = 0;
var items = property.FindPropertyRelative("items");
var props = new string[] {"transform", "^", "v", "-"};
var widths = new float[] {.7f, .1f, .1f, .1f};
float lineHeight = 18;
bool changedLength = false;
if (items.arraySize > 0)
{
for (int i = 0; i < items.arraySize; i++)
{
var item = items.GetArrayElementAtIndex(i);
float rowX = x;
for (int n = 0; n < props.Length; ++n)
{
float w = widths[n]*inspectorWidth;
// Calculate rects
Rect rect = new Rect(rowX, y, w, lineHeight);
rowX += w;
if (n == 0)
{
EditorGUI.ObjectField(rect, item.objectReferenceValue, typeof (Transform), true);
}
else
{
if (GUI.Button(rect, props[n]))
{
switch (props[n])
{
case "-":
items.DeleteArrayElementAtIndex(i);
items.DeleteArrayElementAtIndex(i);
changedLength = true;
break;
case "v":
if (i > 0)
{
items.MoveArrayElement(i, i + 1);
}
break;
case "^":
if (i < items.arraySize - 1)
{
items.MoveArrayElement(i, i - 1);
}
break;
}
}
}
}
y += lineHeight + spacing;
if (changedLength)
{
break;
}
}
}
else
{
// add button
var addButtonRect = new Rect((x + position.width) - widths[widths.Length - 1]*inspectorWidth, y,
widths[widths.Length - 1]*inspectorWidth, lineHeight);
if (GUI.Button(addButtonRect, "+"))
{
items.InsertArrayElementAtIndex(items.arraySize);
}
y += lineHeight + spacing;
}
// add all button
var addAllButtonRect = new Rect(x, y, inspectorWidth, lineHeight);
if (GUI.Button(addAllButtonRect, "Assign using all child objects"))
{
var circuit = property.FindPropertyRelative("circuit").objectReferenceValue as WaypointCircuit;
var children = new Transform[circuit.transform.childCount];
int n = 0;
foreach (Transform child in circuit.transform)
{
children[n++] = child;
}
Array.Sort(children, new TransformNameComparer());
circuit.waypointList.items = new Transform[children.Length];
for (n = 0; n < children.Length; ++n)
{
circuit.waypointList.items[n] = children[n];
}
}
y += lineHeight + spacing;
// rename all button
var renameButtonRect = new Rect(x, y, inspectorWidth, lineHeight);
if (GUI.Button(renameButtonRect, "Auto Rename numerically from this order"))
{
var circuit = property.FindPropertyRelative("circuit").objectReferenceValue as WaypointCircuit;
int n = 0;
foreach (Transform child in circuit.waypointList.items)
{
child.name = "Waypoint " + (n++).ToString("000");
}
}
y += lineHeight + spacing;
// Set indent back to what it was
EditorGUI.indentLevel = indent;
EditorGUI.EndProperty();
}
public override float GetPropertyHeight(SerializedProperty property, GUIContent label)
{
SerializedProperty items = property.FindPropertyRelative("items");
float lineAndSpace = lineHeight + spacing;
return 40 + (items.arraySize*lineAndSpace) + lineAndSpace;
}
// comparer for check distances in ray cast hits
public class TransformNameComparer : IComparer
{
public int Compare(object x, object y)
{
return ((Transform) x).name.CompareTo(((Transform) y).name);
}
}
}
#endif
}
