Failing to unwrap an arch

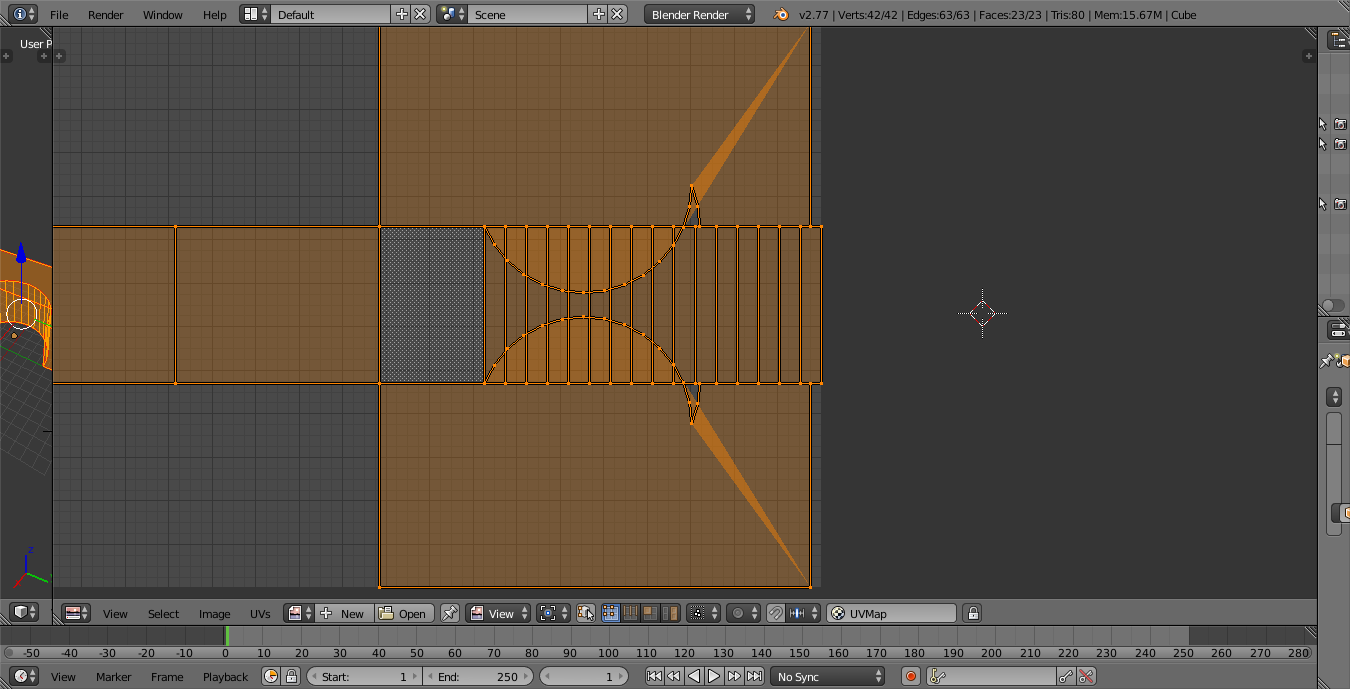

I am creating a little arch, a child’s toy, in Blender. I started with a cube, stretched it. Then I went to object mode and created a cylinder. I plece the cylinder in the middle of the box, and used a boolean modifyier to subtract out an arch. Everything looked good, so I deleted the cylinder, and marked some seams on the toy arch. When I unwrapped I found a lot of wierdness and extra geometry. What did I do wrong, and how can I clean this up?

Thank you,

James McLain

Try removing doubles. Looks like you might of extruded at a distance of 0 and it left doubles in there. So when you goto unwrap you will miss it because you can’t see the two edges and verts ontop of each other.
